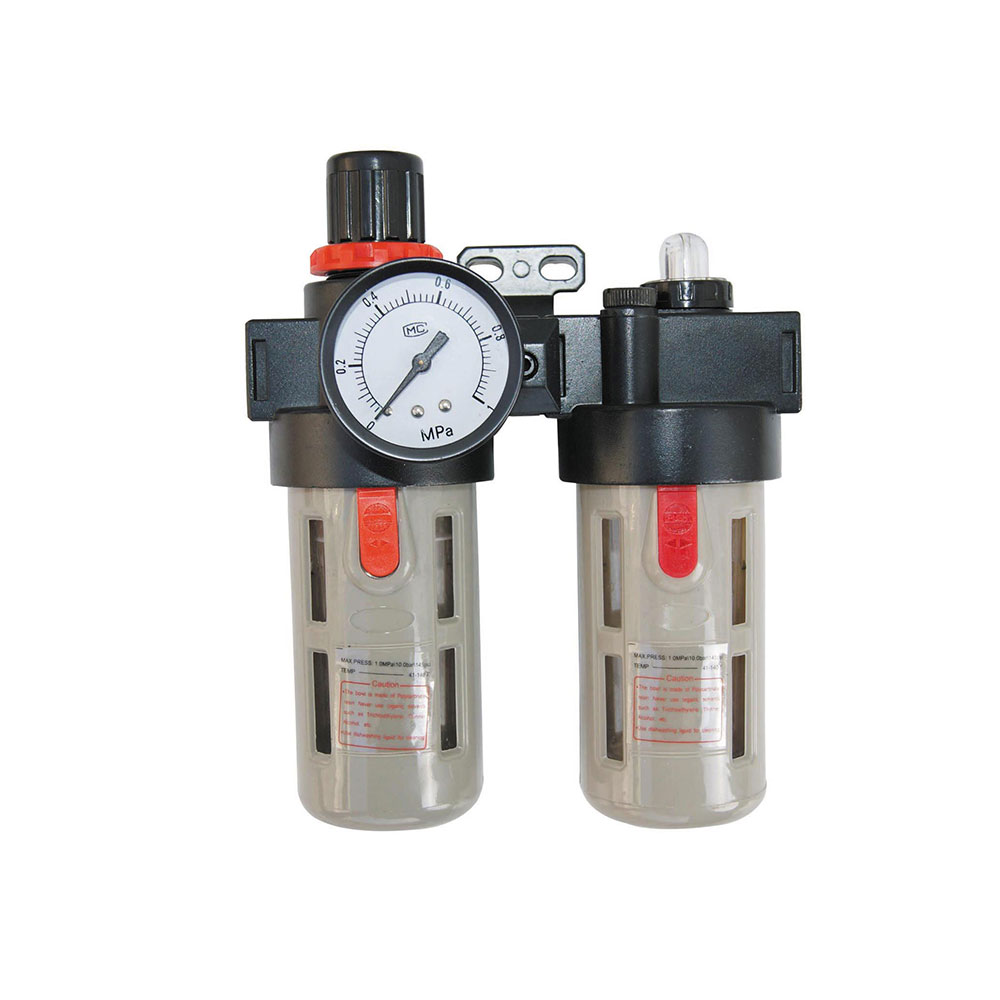

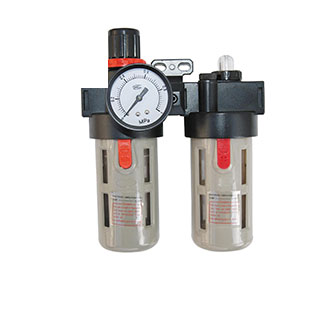

BFC Series F.R.L Combination

B series compressed air control is designed by our company,this compressed air control includes air filter regulators,oil lubricator. The compressed air control can efficiently separate oil, water, and other impurities.It can automatically drain with the built-in pressure drainage device.

DESCRIPTION

This air conditioner control unit set filter, decompression, oil mist in a body, has the advantages of the compact structure, large flow, the stability of the output pressure, the installation easily.the air control units with a pressure gauge,a mounting bracket. Oil lubricators has the function that can oil persistent, provided with a cup cover,beautiful appearance, safe and reliable.

characteristic:
1.the air conditioner control ensure that resistance to pressure 1.5 MPa
2.The air conditioner control highest working pressure 1.0 MPa
3.The air conditioning control unit ambient temperature 5~60 ℃
4.All with protection cover

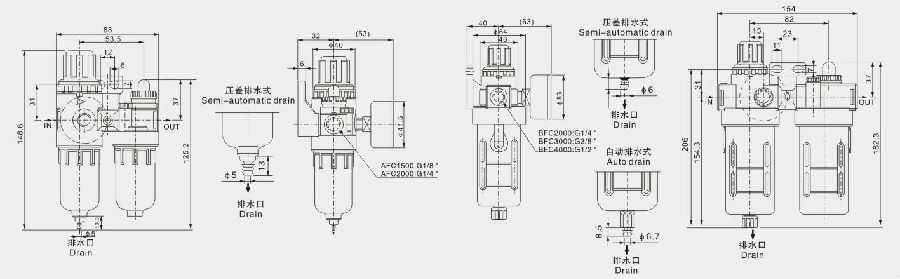

Data Sheet

Model		AFC1500	AFC2000	BFC2000	BFC3000	BFC4000
Working medium		Air
Adapter diameter		PT1/8	PT1/4	PT1/4	PT3/8	PT1/2
Filter accuracy		40μ
Adjusted pressure range		0.5~0.8kgf/cm2
The maximum adjustable pressure		9.5kgf/cm2
Guarantee pressure resistance		15.0kgf/cm2
Using the temperature range		5~60℃
Filter water capacity		15CC		60CC
Feed oil cup volume		25CC		90CC
Recommended lubricating oil		ISO VG32 or same level oil
Weight		0.5kg		0.7kg
Components	Filter regulator	AFR1500	AFR2000	BFR2000	BFR3000	BFR4000
	Oil feeder	AL1500	AL2000	BL2000	BL3000	BL4000
