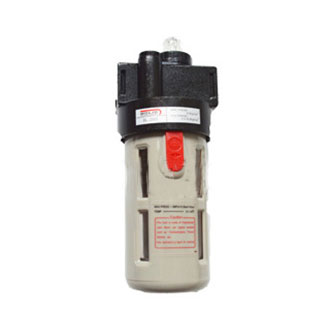

The air filter regulator & lubricator can be used to add the precisely metered oil into the compressed air. When the gas flows through the lubricator, the pressure makes the oil extract from the bowl and then drop down to the cover. The oil drop in through the proportional regulation ,and are atomized with the air flow.Its reduce the wear of drive parts.

characteristic:

1.The pneumatic filter regulator lubricator ensure pressure resistance 1.5 MPa

2.The pneumatic filter regulator lubricator highest working pressure 1.0 MPa

3.Ambient temperature 5~60 ℃

4.The pneumatic components all with protection cover
