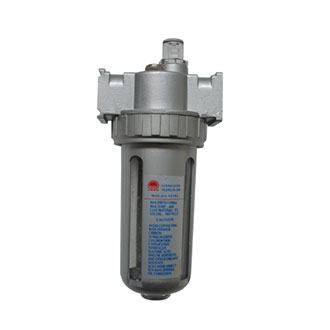

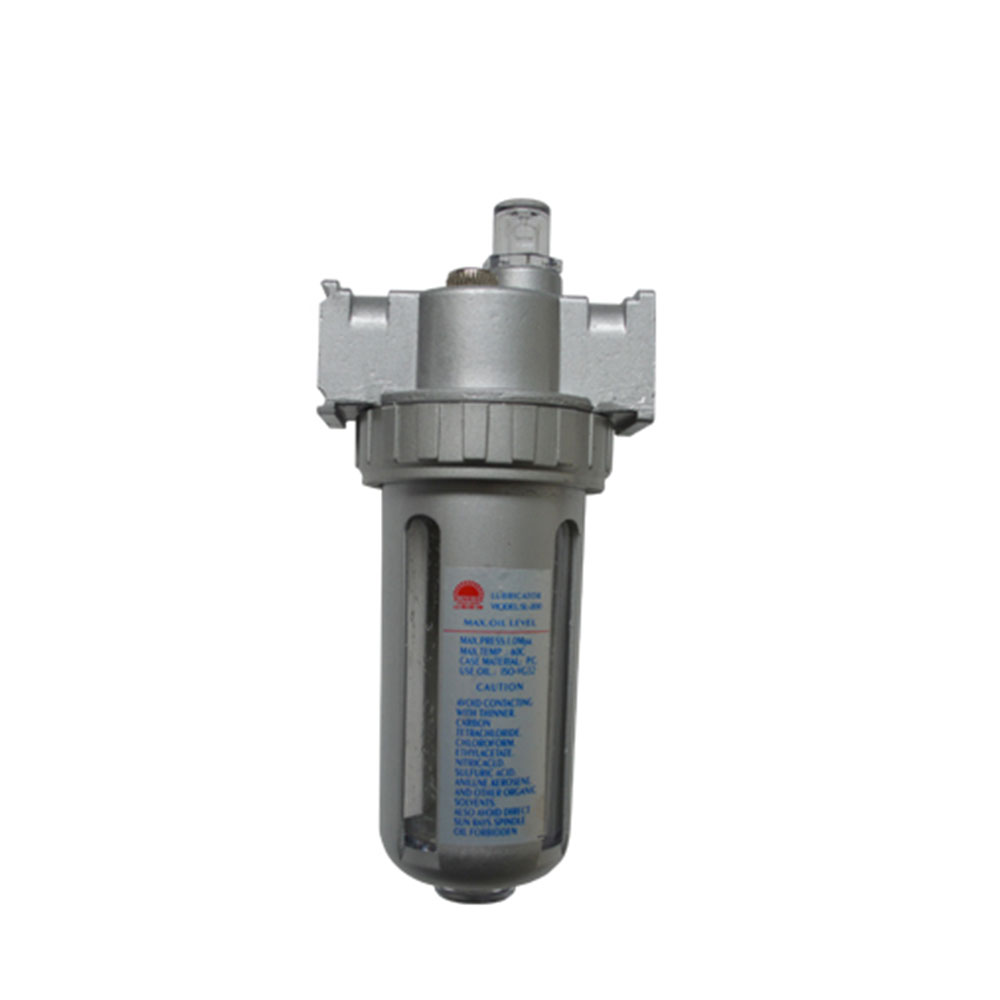

The Oil air lubricators can be used to add the precisely metered oil drippings into the compressed air. When the gas flows through the nozzle inside the pipeline, the resulted differential pressure makes the oil drippings extract from the bowl and then drop down to the cover. The oil drippings drop in through the proportional regulation ,and are atomized with the high-speed air flow.The wear of drive parts can be reduced .The flow rate is high ,and the size of oil dripping is directly proportional to the flow rate of gas

characteristic:

1.The air lubricators ensure pressure resistance 1.5 MPa

2.The air lubricators highest working pressure 1.0 MPa

3.Ambient temperature 5~60 ℃

4.The pneumatic components all with protection cover
