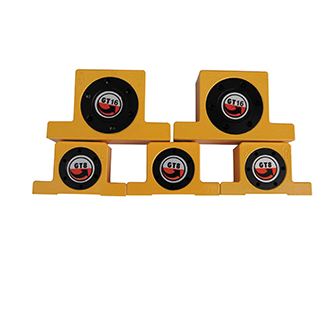

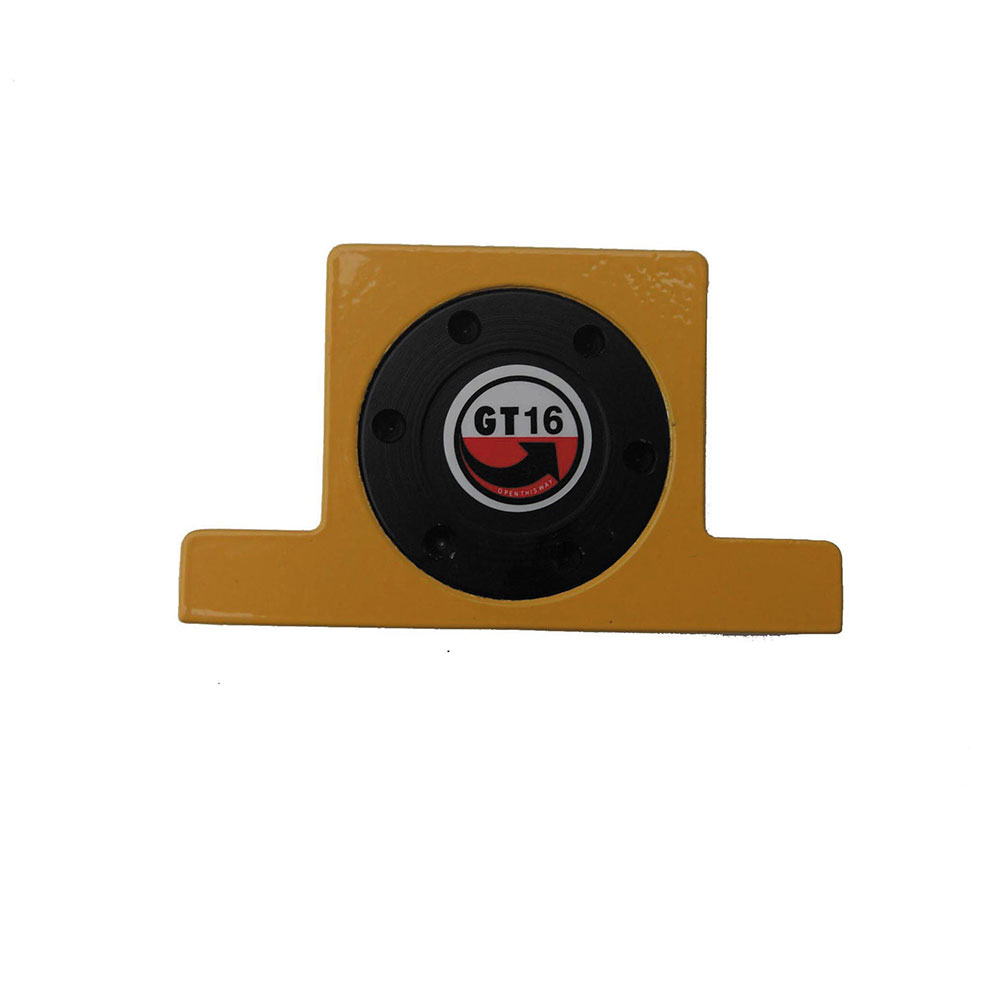

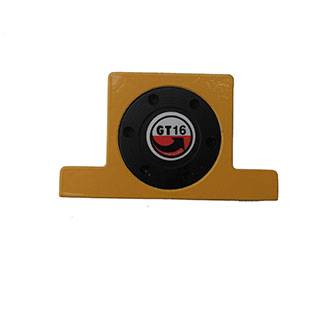

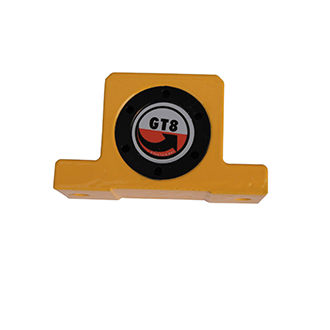

Pneumatic Vibrator GT Series

pneumatic vibrators features:Only needs clean air,Work with low noise,Lubrication free,Small size, easy to install and maintain;

DESCRIPTION

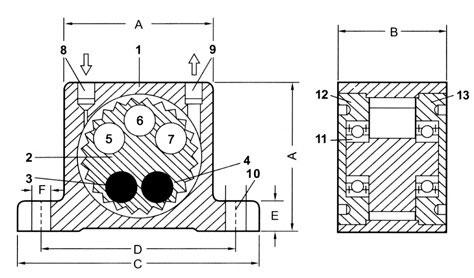

pneumatic turbine vibrators combines high-speed processing & eccentric torque to make a strong vibration force.pneumatic turbine vibrators inner and outer raceways of the bearings are designed so that the bearings can be easily replaced using only a pin-wrench.

The body is made from an extruded stove enamelled aluminium section and the hard coated end plates enables the vibrators to be used in the food and pharmaceutical industries.

Data Sheet

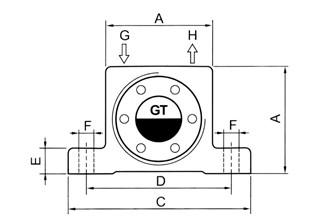

Model	A		Width		C		D		E		F		G/H* Thread	Weight
	mm	inch	mm	inch	mm	inch	Mm	inch	mm	inch	mm	inch		kg	Lbs
GT-8	50	1.97	33	1.30	86	3.38	68	2.68	12	0.47	7	0.27	1/8"	0.250	0.55
GT-10														0.255	0.56
GT-13	65	2.56	42	1.65	113	4.45	90	3.54	16	0.63	9	0.35	1/4"	0.565	1.24
GT-16														0.580	1.28
GT-20	80	3.15	56	2.20	128	5.04	104	4.09	16	0.63	9	0.35	1/4"	1.090	2.40
GT-25														1.120	2.46
GT-30	100	3.94	73	2.87	160	6.30	130	5.12	20	0.79	11	0.43	3/8"	2.200	4.85
GT-36														2.300	5.10
GT-40	120	4.72	83	3.26	194	7.64	152	5.99	24	0.94	17	0.67	3/8"	3.690	8.13
GT-48														3.890	8.57

Model	Frequency V.P.M				Centrifugal force measured				Air consumption per minute
	0.2 MPa	0.4 MPa	0.6 MPa	0.2MPa		0.4MPa	0.6MPa	0.2MPa		0.4MPa	0.6MPa
				N		N	N	Ltr		Ltr	Ltr
GT·08	36.00	42.000	46.00	990		2.060	2.910	46		80	112
GT·10	27.500	35.000	37.500	840		1.390	2.400
GT·13	26.000	30.000	33.000	1.400		2.440	3.730	120		200	290
GT·16	17.000	21.500	24.000	1.220		2.090	3.160
GT·20	17.000	20.000	23.000	2.170		4.040	5.520	185		325	455
GT·25	12.000	15.500	17.000	2.120		3.510	5.070
GT·30	13.000	14.000	16.000	3.380		5.430	7.540	330		530	745
GT·36	8.000	10.000	13.000	3.290		5.360	7.190
GT·40	7.700	8.800	9.500	4.300		7.300	9.800	425		700	970
GT·48	6.000	7.500	9.700	4.900		7.700	10.500
