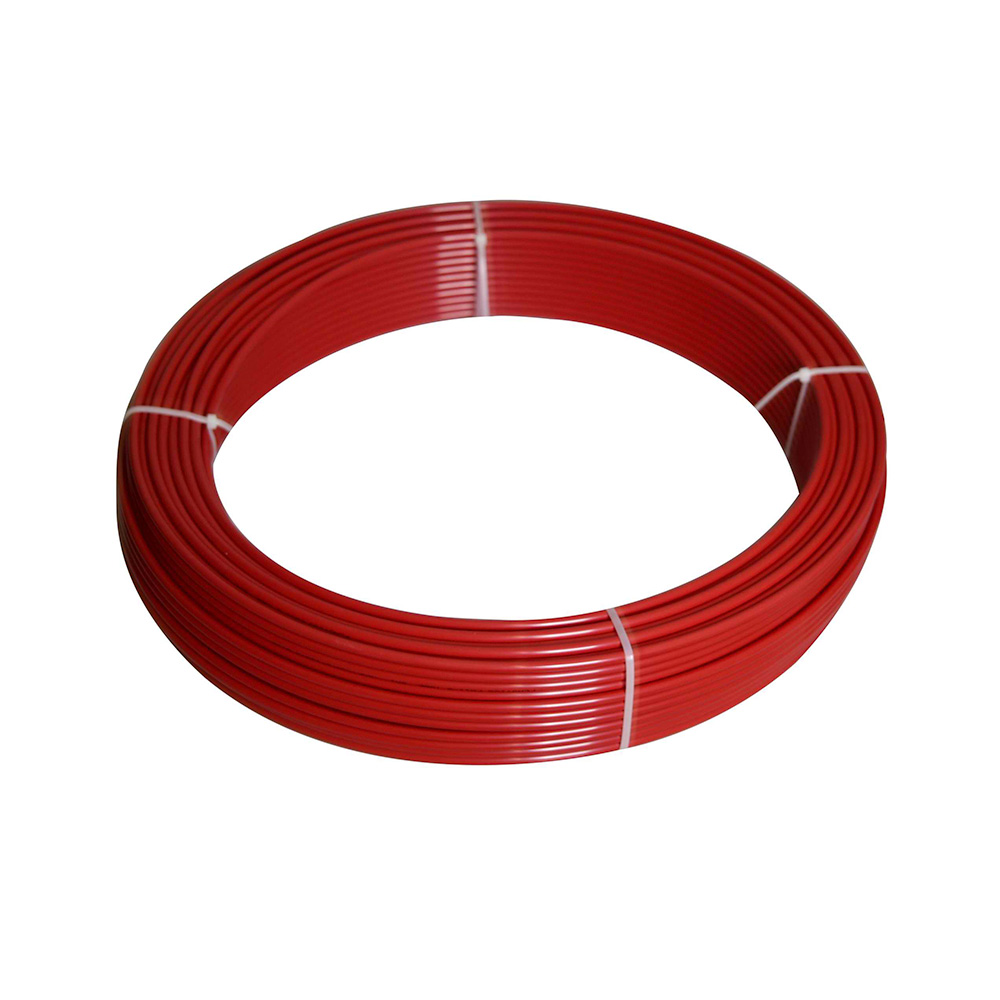

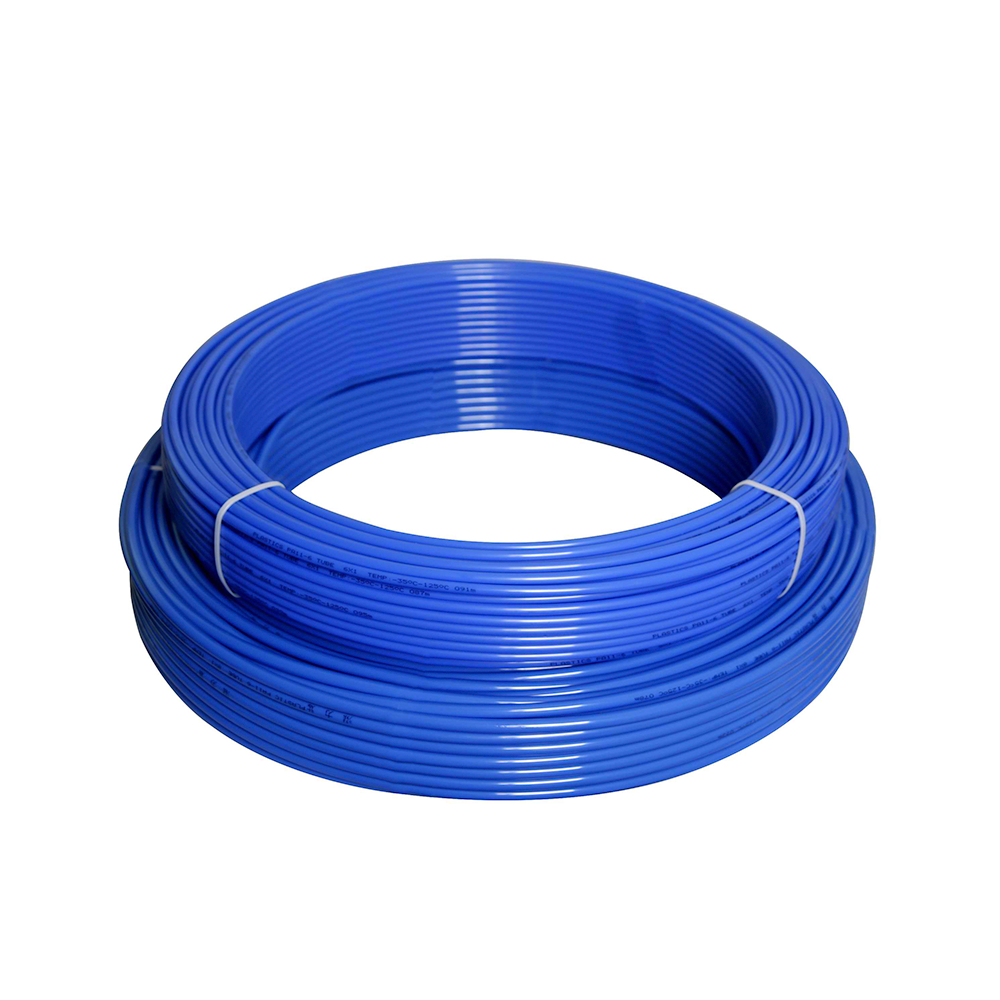

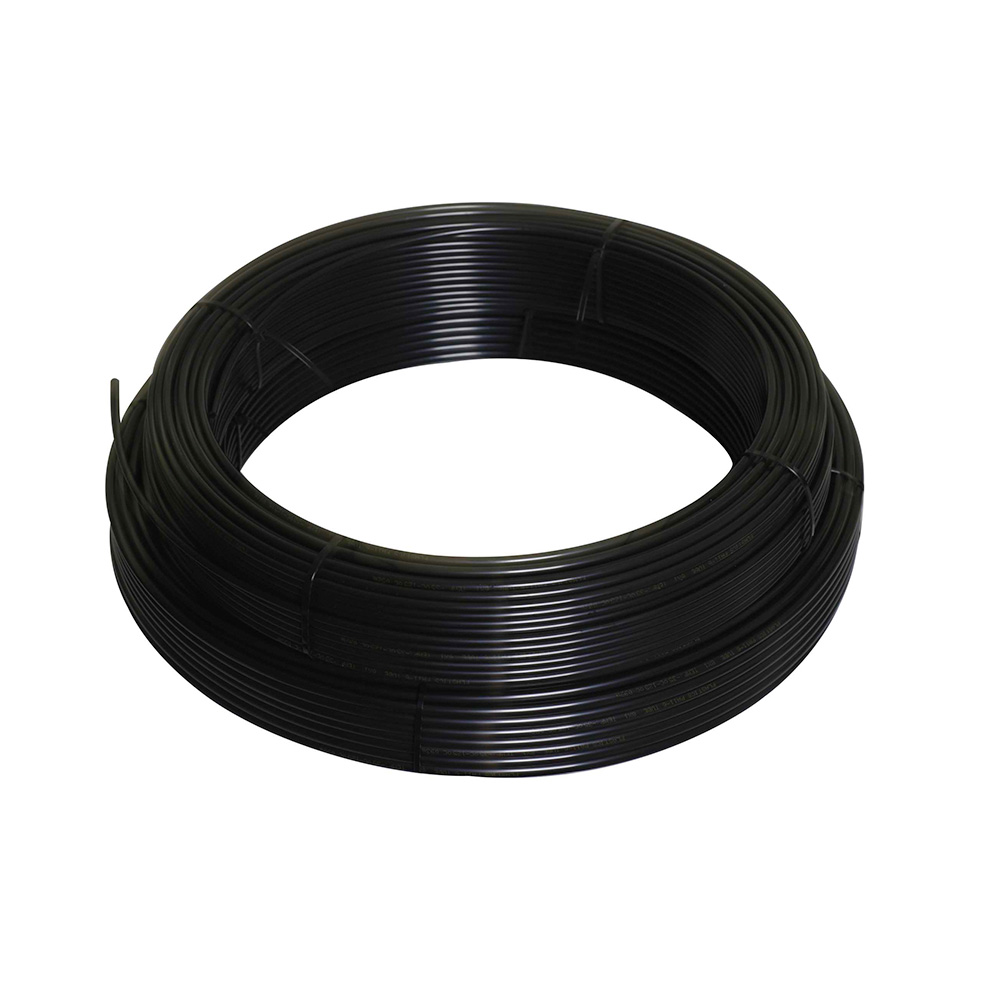

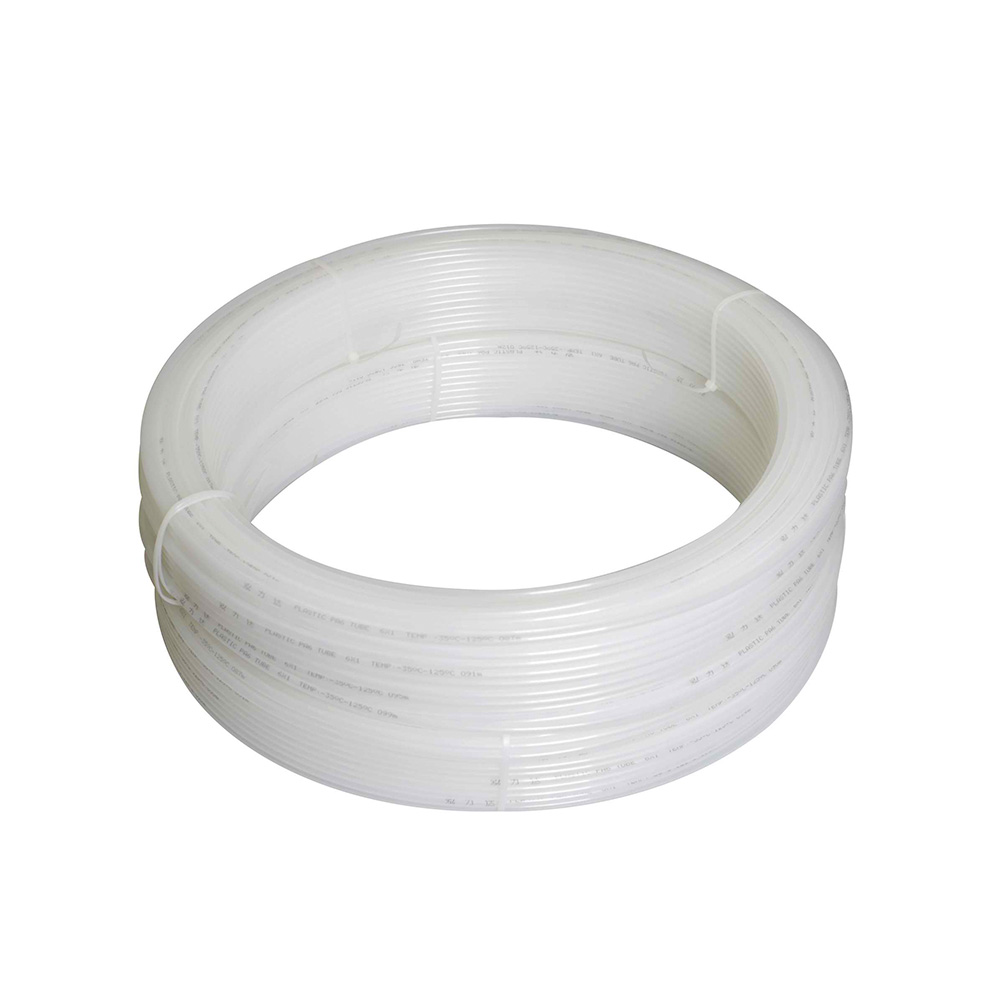

Polyamide tube

HOLID Polyamide Tube excels in pressure resistance, weathering resistance,wear resistanceand low temperature resistance. The polyamide tube offers a long and stable service life without flexing fatigue.

inquiry
DESCRIPTION

Polyamide tubing can withstand higher temperatures, making it an ideal choice for a wide variety of applications. Polyamide tubing is greater flexibility ,a lighter weight,and smaller bend radius. It is also more corrosion resistant than other types of pneumatic tubing. It’s heat and UV stabilization makes it resistant to stress-cracking, so it works well in sunny areas. It is chemical resistant which makes it a good choice in areas where exposure to certain chemicals is a possibility.


Polyamide tubing offers high tensile strength to help enhance coupling retention in high-pressure, high-temperature, and high-vibration environments. It is suitable for use with air tubelines of the automobiles, marine control systems, forklift,engineering machines ,machine tool systems, deiesel engines and oil/chemical process lines.


Data Sheet
Model OD(MM) Wall thickness(MM) Working pressure(Mpa) Bursting pressure(Mpa) Bend radius(MM)
PA-3*0.5 3 0.5 3.0 4.5 18
PA- 4*0.75 4 0.75 3.1 5.5 20
PA- 4*1 4 1 4.5 6.8 30
PA-5*1 5 1 3.4 6.5 35
PA-6*1 6 1 3.2 6.3 40
PA-8*1 8 1 2.5 5.7 50
PA-10*1 10 1 2.6 4.5 65
PA-10*1.5 10 1.5 2.7 5.7 65
PA-12*1 12 1 2.6 4.5 65
PA-12*1.5 12 1.5 2.8 5.7 70
PA-14*1.5 14 1.5 2.0 5.7 80
PA-16*1.5 16 1.5 2.0 5.7 130
PA-18*1.5 18 1.5 1.8 3.6 155
PA-1/4"

3.2 6.3 40
PA-5/16"

2.7 6.0 50
PA-3/8"

2.6 4.5 65
PA-1/2"

2.5 5.0 70
