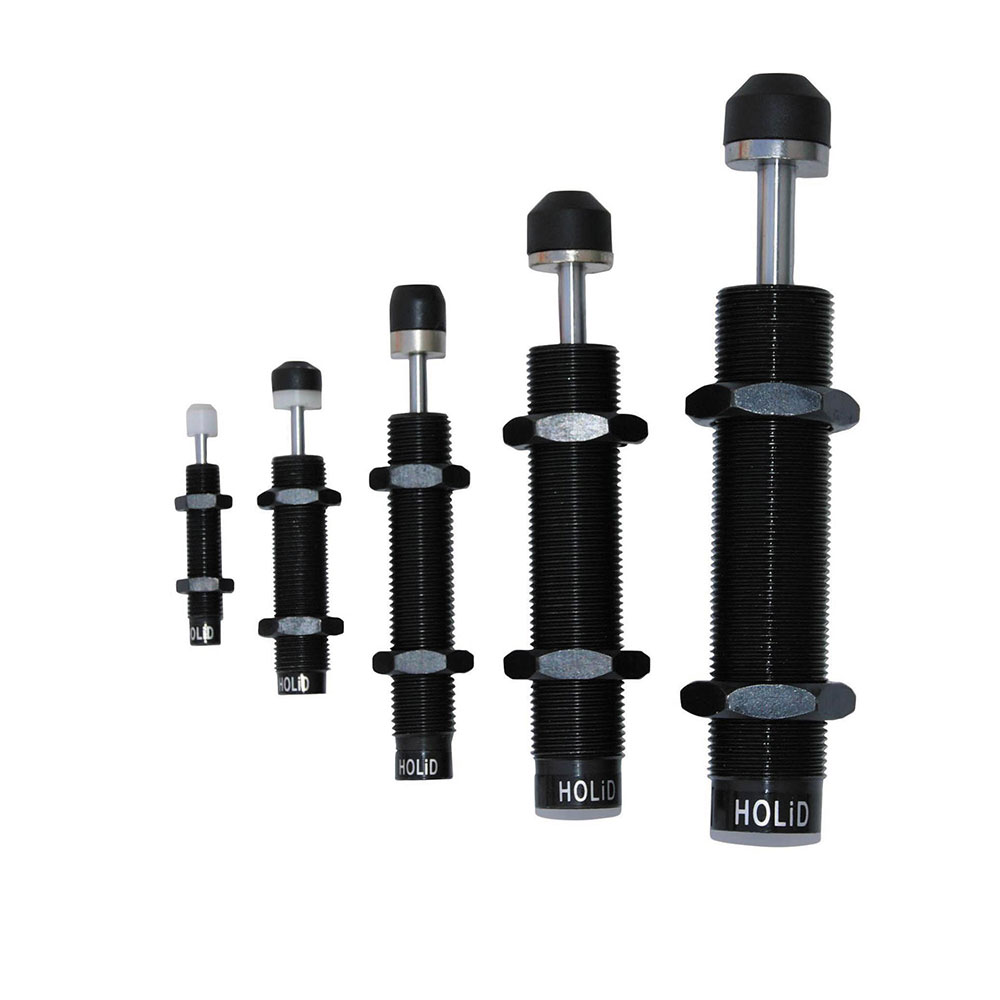

Auto Industrial Shock Absorber

Auto industrial shock absorbers is Self-compensating,industrial shock absorbers are maintenance free, self-contained hydraulic devices. Auto industrial shock absorbers can reduce the vibration and noise in the automatic mechanical movement and stop object balance effectively in the action. It can increase capacity and prolong the life of the machine to reduce the repair cost,also improve the mechanical efficiency.industrial shock absorber include miniature shock absorbers and heavy duty industrial Shock Absorber.miniature shock absorber have the model AC0806,AC1008,AC1210.

inquiry
DESCRIPTION

Auto industrial shock absorbers is an hydraulic industrial shock absorbers that is maintenance-free automatic compensation, industrial shock absorbers has self regulating function to form an good buffer effect, with the change of impact velocity and weight .Meanwhile the piston rod with high hardness and imported special seals are ensured high service life, special materials and surface treatment makes this product has good anti-corrosion performance, ensuring the normal use in harsh conditions.
With excellent and stable speed and the performance of shock absorption, Its resistance will adjusting automatically when suffering the loaded strike;
The axis of stainless steel with high hardness, making the buffer have better impact resistance performance and anti-corrosion performance, ensuring the normal use in harsh conditions.

Matters needing attention:
1.Keep the piton rod cleaning, do not have iron foreign body.
2.Pay attention to the strength of fixed plate and eccentric Angle when assembly.
3.No painting in tube teeth and the axis, so as not to affect the cooling effect and leak case;
4.If you have the cushion cap product, do not unload cushion cap by self for using , this will seriously affect the service life.

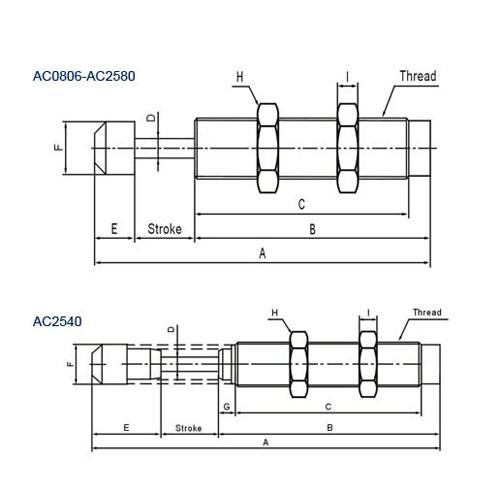

Data Sheet

Model

Thread

Stroke(mm)

A

B

C

D

E

F

H

I

AC0806

M8×1.0

6

50.5

38

33

3

6

6.6

11

3

AC1005

M10x1

5

38.7

27.7

22.9

3

6

8.6

14

4

AC1008

M10x1

8

57.5

43

38

3

6

8.6

14

4

AC1210

M12x1

10

70

50

45.5

9

9.5

10.3

16

4

AC1412

M14x5

12

103

76

67

4

14.6

12

19

5

AC1416

M14x1.5

16

126

95

86

4

14.6

12

19

5

AC1420

M14x1.5

20

129.3

95

86

4

14.3

12

19

5

AC2016

M20x1.5

16

129.5

110

100

5

18

18

27

8

AC2020

M20x1.5

20

148.5

110

100

5

18

18

27

8

AC2030

M20x1.5

30

158.5

110

100

5

18

18

27

8

AC2050

M20x1.5

50

210.8

142.3

131.3

5

18

18

27

8

AC2525

M25x1.5

25

156

111

101

8

19.5

22

32

8

AC2540

M25x1.5

50

240.5

170.5

100

8

19.5

22

32

8

AC2580

M25x1.5

80

337

237

100

8

19.5

22

32

8


Model Thread Stroke(mm) A B C D E F G H I
AC2540 M25x1.5 40 212.7 127.3 115 8 35.6 22 9.4 32 10
AC3660 M36x1.5 60 248.5 162 134 10 26 35 17 46 16

Model Stroke (mm) Energy absorption (Nm)
Hours of energy absorption (Nm) Max effective mass(kg) Max impact Speed (m/s) Operating
Temperature (°C)
Weight (g)
1 2 3 1 2 3
AC0806 6 2 1200 0.5 2 6 2 1 0.5 -40~80 11
AC1005 5 3 3600 1 3 7 3 1.5 0.8 -40~80 14
AC1008 8 4 5000 2 4 9 3 1.5 0.8 -40~80 20
AC1210 10 5 10000 5 10 30 2 1.5 0.8 -40~80 31.5
AC1412 12 15 30000 8 50 100 3 1.5 0.8 -40~80 80
AC1416 16 20 35000 10 70 150 3 1.5 0.8 -40~80 90
AC1420 20 20 35000 10 70 150 3 1.5 0.8 -40~80 95
AC2020 20 40 40000 30 200 700 3.5 1.5 0.8 -40~80 215
AC2050 50 60 60000 60 400 1200 3.5 2 1 -40~80 300
AC2525 25 80 70000 200 800 1500 4 2.5 1 -40~80 330
AC2540 40 120 75000 300 1200 2000 4 2.5 1 -40~80 430
AC2580 80 150 120000 350 1350 2300 4 2.5 1 -40~80 535
AC3660 60 250 120000 400 1500 2400 4 2.5 1 -40~80 1030

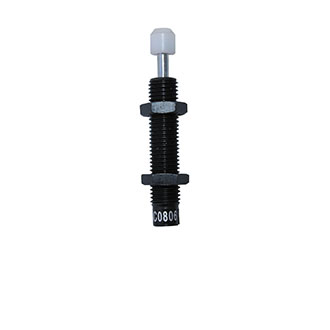

AC08062 AC0806 AC10081

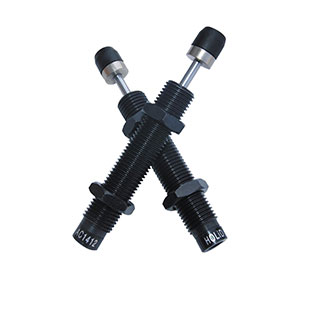

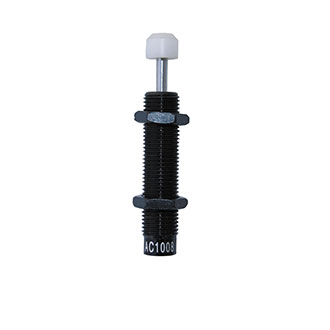

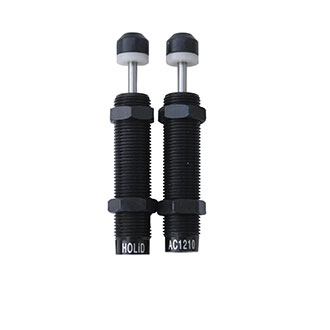

AC1008 AC1210 AC1412

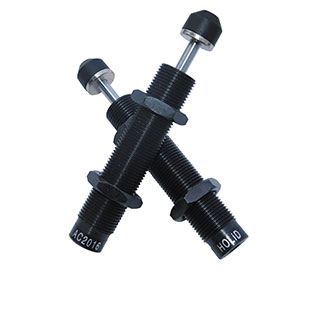

AC1416 AC2016 AC2020

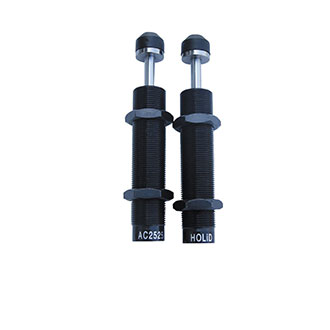

AC2050 AC2525 AC2550


AC3660
