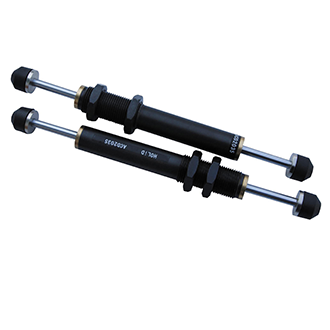

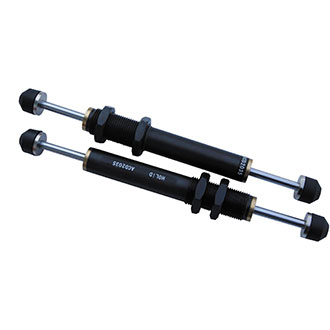

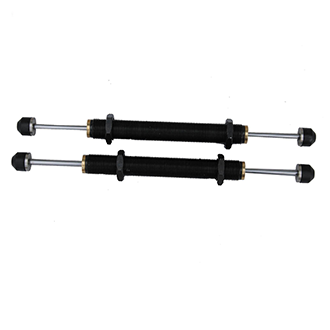

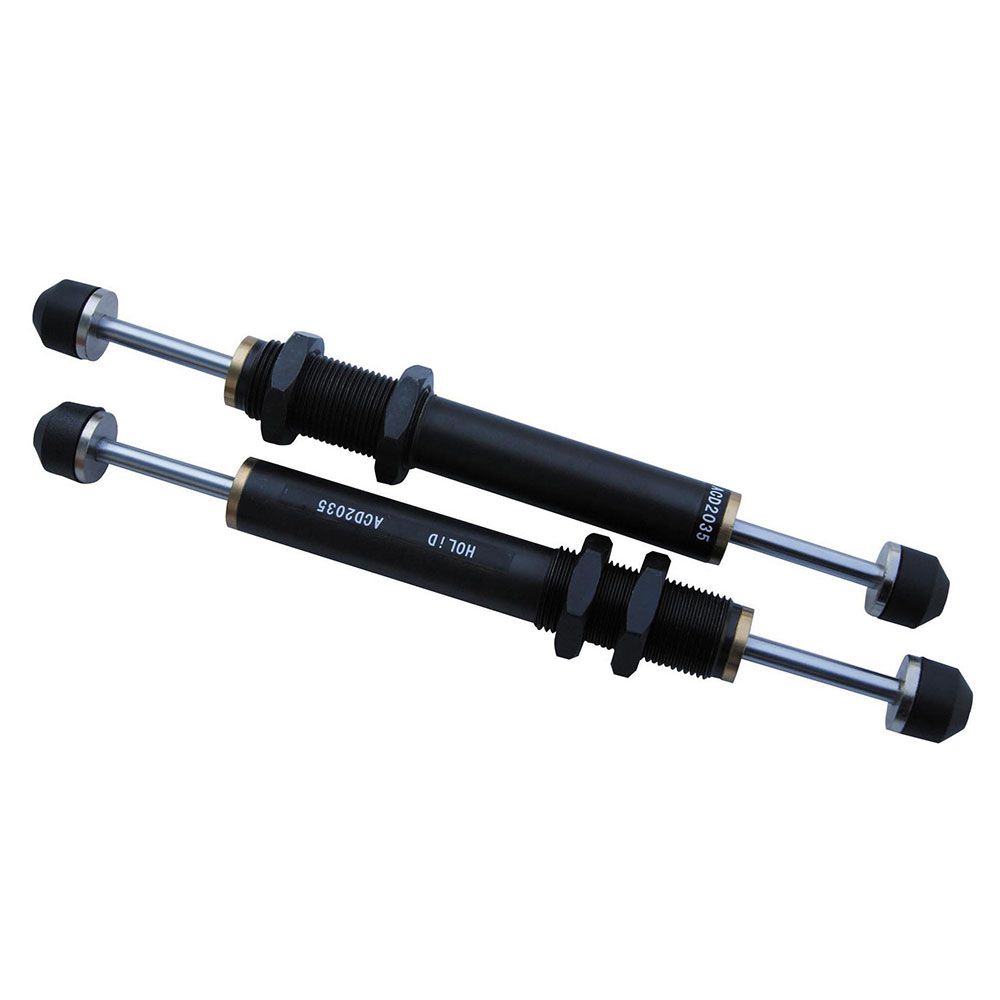

Double Direction Shock Absorber

Double directionl hydraulic dampers main used Robotic Arm,pallet systems.this model can bidirectional buffer.

inquiry
DESCRIPTION

Double directionl hydraulic dampers is an industrial dampers that is maintenance-free bidirectional automatic compensation, has self regulating function to form an good buffer effect, with the change of impact velocity and weight .Meanwhile the hydraulic dampers piston rod with high hardness and imported special seals are ensured high service life, special materials and surface treatment makes this product has good anti-corrosion performance, ensuring the normal use in harsh conditions.
Features:industrial dampers thread’s design is easy to install, Bidirectional dampers, automatic pressure compensation.
Buffer body: industrial dampers is high strength hardened steel, surface black finish
The piston rod: high hardness of stainless steel
Piston: wear-resisting for copper
Suitable for working temperature range in - 40 ℃to +85℃

Matters needing attention:
1.Keep the oil dampers piston rod cleaning, do not have iron foreign body.

2.No painting in oil dampers tube teeth and the axis, so as not to affect the cooling effect and leak case.
3.Pay attention to the strength of the fixed plate and eccentric Angle when assembly.
4.Bidirectional cannot act at the same time, the other side can work only to one side after the reset complete
5.If the oil dampers have the cushion cap product, do not unload oil dampers cushion cap by self for using, this will seriously affect the service life


Data Sheet

Model

Thread

Stroke(mm)

A

B

C

D

E

F

G

H

I

AC2030-1

M20×1.5

30

189

123

44

6

18

18

3

26

8

AC2030-2

M20×1.5

30

189

123

44

6

18

18

3

26

8

AC2035-1

M20×1.5

35

223

123

40

6

15

18

5

26

8

AC2035-2

M20×1.5

35

223

123

40

6

15

18

5

26

8


Model

Stroke
(mm)

Energy absorption (Nm)

Hours of energy absorption (Nm)

The most effective (kg)

Max impact Speed (m/s)

Operating
Temperature
(°C)

ACD-2030-1

30

45

54,000

40

3.5

-40~80

ACD-2030-2

30

45

54,000

300

2.0

-40~80

ACD-2035-1

35

52

62,400

40

3.5

-40~80

ACD-2035-2

35

52

62,400

200

2.0

-40~80



ACD2035 ACD2050 ACD2030
