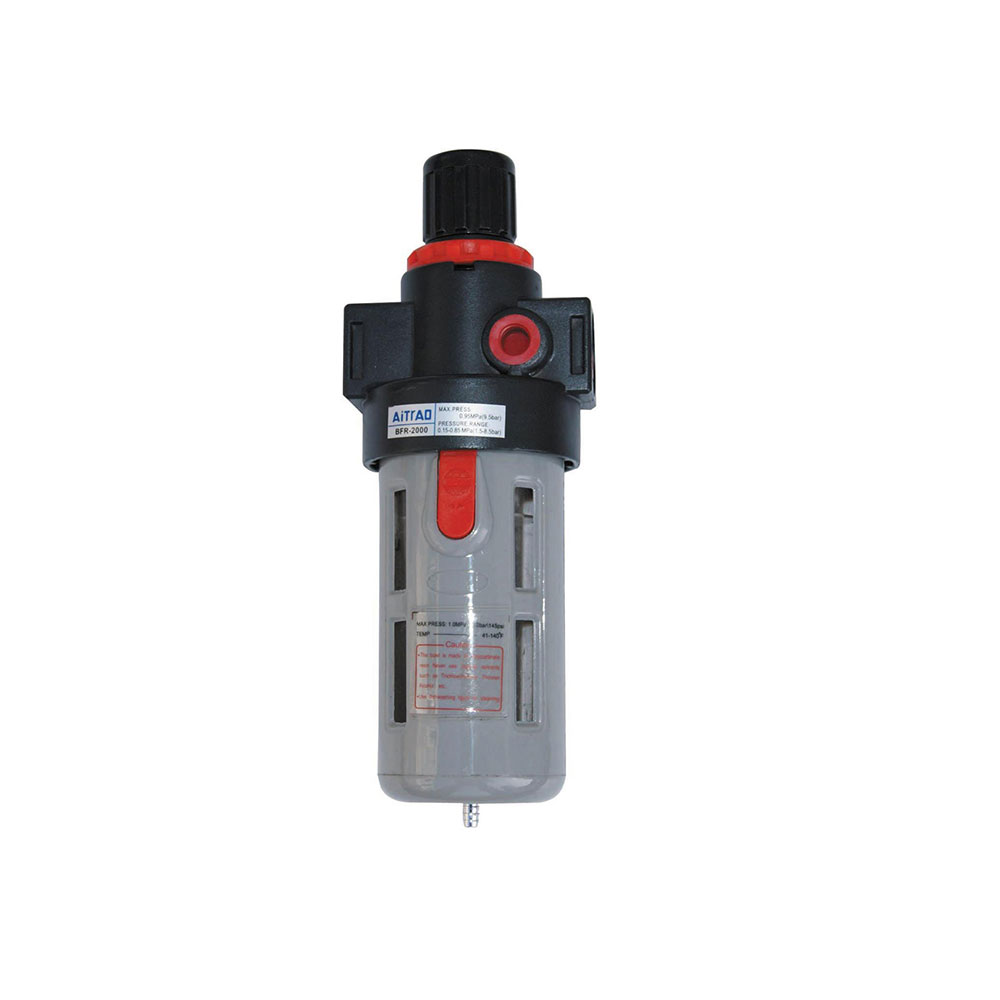

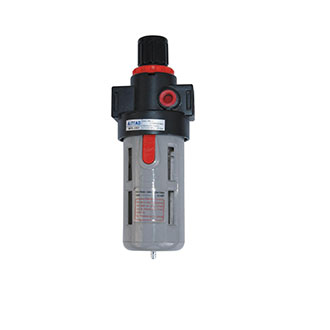

BFR Series Filter Pressure Regulator

The pressure regulator with filter,reduced pressure,separation of water and oil,the structure is compact,large flow,output pressure stable, and easy to install

inquiry
DESCRIPTION

This pressure regulator with filter have the function of adjusting for the air pressure and air regulator, using the advanced filter medium, make high filtration precision, at the same time, air filter pressure regulator through the knob which can regulate valves to control the pressure what adjust to the need of compressed air pressure, keeping the stable pressure of work, safe and reliable.

characteristic:
1.Ensure pressure resistance 1.5 MPa
2.The pressure regulator with filter highest working pressure 1.0 MPa
3.the filter pressure regulator ambient temperature 5~60 ℃
4.filter pressure regulator all with protection cover

Data Sheet

Model AFC1500 AFC2000

BFC2000

BFC3000 BFC4000
Working    medium

Air

Adapter    diameter PT1/8 PT1/4 PT1/4 PT3/8 PT1/2
Filter    accuracy 40μ
Adjusted pressure    range 0.5~0.8kgf/cm2
The    maximum adjustable pressure 9.5kgf/cm2
Guarantee pressure    resistance 15.0kgf/cm2
Using the    temperature range 5~60℃
Filter    water capacity 15CC 60CC
Feed oil    cup volume 25CC 90CC
Recommended    lubricating oil ISO VG32 or same level oil
Weight 0.5kg 0.7kg
Components Filter regulator AFR1500 AFR2000 BFR2000 BFR3000 BFR4000
Oil feeder AL1500 AL2000 BL2000 BL3000 BL4000
