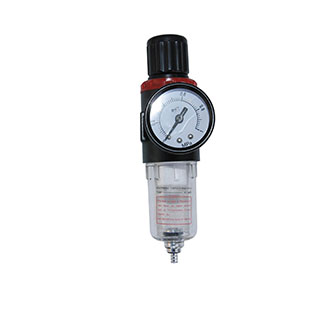

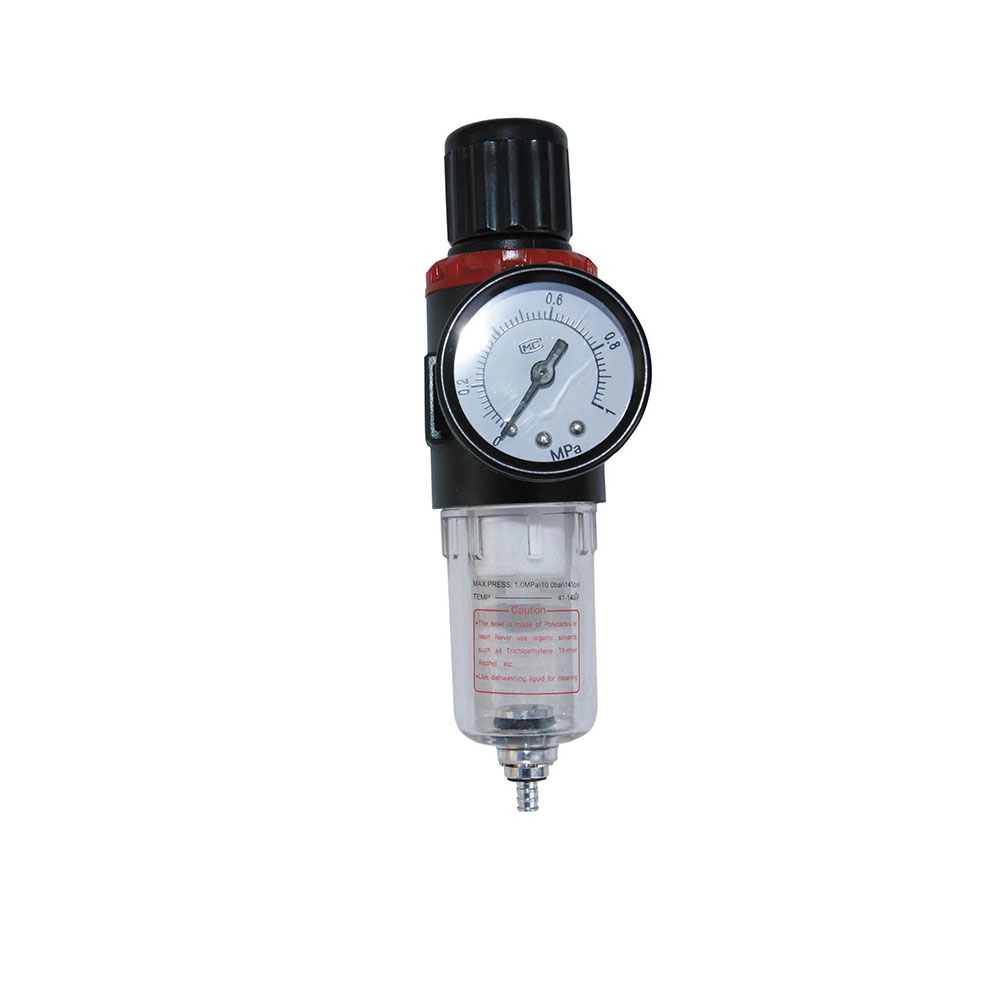

AFR Series Filter Pressure Regulator

The air filter pressure regulator,reduced pressure,the separation of oil and water,the structure is compact,large flow,output pressure stable, and easy to install

DESCRIPTION

This air filter pressure regulator have the function of adjusting for the air pressure and air regulator, using the advanced filter medium, make high filtration precision, at the same time, air pressure regulator filter through the knob which can regulate valves to control the pressure what adjust to the need of compressed air pressure, keeping the stable pressure of work, safe and reliable.

characteristic:
1.Ensure pressure resistance 1.5 MPa
2.the air pressure regulator filter highest working pressure 1.0 MPa
3.the air compressor filter regulator ambient temperature 5~60 ℃
4.the air compressor filter regulator all with protection cover

Data Sheet

Model	AFR1500	AFR2000	BFR2000	BFR3000	BFR4000
Working medium	Air
Adapter diameter	PT1/8	PT1/4	PT1/4	PT3/8	PT1/2
Filter accuracy	40μ
Adjusted pressure range	0.5~0.8kgf/cm2
The maximum adjustable pressure	9.5kgf/cm2
Guarantee pressure resistance	15.0kgf/cm2
Using the temperature range	5~60℃
Filter water capacity	15CC		60CC
Weight	0.25kg		0.4kg
